| 3 |
1 1/2" No-hub coupling |
|
5500-99 |
| 4 |
3" No-hub coupling |
|
5700-99 |
| 6 |
Float assembly |
|
5805-99 |
| 8 |
Inlet check valve |
|
5200-99 |
| 9A |
Separator/muffler |
Simplex |
5005-99S |
| 9B |
Separator/muffler |
Duplex |
5005-99D |
| 11 |
Solenoid valve |
|
5400-99 |
| 16 |
Recycling tubing |
|
5151-99 |
| 17 |
Constant gpm/variable pressure orifice |
|
5150-99 |
| 21 |
Motor turbine cover |
|
2400-99 |
| 22A
|
Motor turbine plastic (3 & 5 HP) |
Noryl, std. |
0800-35 |
| |
|
PBT |
0800-35P |
| |
|
Tefzel |
0800-35T |
| 22B
|
Motor turbine plastic (7.5 & 10 HP) |
Noryl, std. |
0800-17 |
| |
|
PBT |
0800-17P |
| |
|
Tefzel |
0800-17T |
| 23
|
O-rings, set of two |
Buna N, std. |
0900-99 |
| |
|
Viton |
0900-99V |
| |
|
EPDM |
0900-99E |
| |
|
Teflon Encapsulated |
0900-99T |
| 24A
|
Shaft Seal assembly (3 & 5 HP) |
Buna N, std. |
1100-35 |
| |
|
Viton |
1100-35V |
| |
|
EPDM |
1100-35E |
| 24B
|
Shaft Seal assembly (7.5 & 10 HP) |
Buna N, std. |
1100-17 |
| |
|
Viton |
1100-17V |
| |
|
EPDM |
1100-17E |
| 27A |
Rotor 3 HP |
|
1400-30 |
| 27B |
Rotor 5 HP |
|
1400-50 |
| 27C |
Rotor 7.5 HP |
|
1400-75 |
| 27D |
Rotor 10 HP |
|
1400-10 |
| 28
|
Rotor setscrew (2 needed for 3-5 HP model & 4 for 7.5-10 HP) |
|
1602-99 |
| 29A |
Shaft key w/expansion pin (3 & 5 HP) |
|
1500-35 |
| 29B |
Shaft key w/expansion pin (7.5 & 10 HP) |
|
1500-17 |
| 31A |
Adjusting setscrew, 1/4" (3 & 5 HP - 2 needed) |
|
1601-35 |
| 31B |
Adjusting setscrew, 3/8" (7.5 & 10 HP - 2 needed) |
|
1601-17 |
| 32 |
Rotor retainer bolt |
|
1775-99 |
| 33A |
Cylinder body 3 HP |
|
2000-30 |
| 33B |
Cylinder body 5 HP |
|
2000-50 |
| 33C |
Cylinder body 7.5 HP |
|
2000-75 |
| 33D |
Cylinder body 10 HP |
|
2000-10 |
| 34 |
Pipe plug, Drain |
|
2401-99 |
| 35A |
Shroud 3 HP |
|
2050-30 |
| 35B |
Shroud 5 HP |
|
2050-50 |
| 35C |
Shroud 7.5 HP |
|
2050-75 |
| 35D |
Shroud 10 HP |
|
2050-10 |
| 36 |
Porting turbine cover Noryl & Neoprene, std. |
|
2300-99 |
| |
|
Noryl & Viton |
2300-99V |
| |
|
Noryl & EPDM |
2300-99E |
| |
|
Noryl & Gortex |
2300-99T |
| |
|
& Neoprene |
2300-99PN |
| |
|
PBT & Viton |
2300-99PV |
| |
|
PBT & EPDM |
2300-99PE |
| |
|
PBT & Gortex |
2300-99PT |
| |
|
Tefzel & Neoprene |
2300-99TN |
| |
|
Tefzel & Viton |
2300-99TV |
| |
|
Tefzel & EPDM |
2300-99TE |
| |
|
Tefzel & Gortex |
2300-99TT |
| 37A |
Through bolts, set of six w/nuts, 3 HP |
|
0500-30 |
| 37B |
Through bolts, set of six w/nuts, 5 HP |
|
0500-50 |
| 37C |
Through bolts, set of six w/nuts, 7.5 HP |
|
0500-75 |
| 37D |
Through bolts, set of six w/nuts, 10 HP |
|
0500-10 |
| 39A |
Motor turbine bolts 1/2-13x1, top |
|
2402-99 |
| 39B |
Motor turbine bolts 1/2-13x1 machined, bottom |
|
2403-99 |
| |

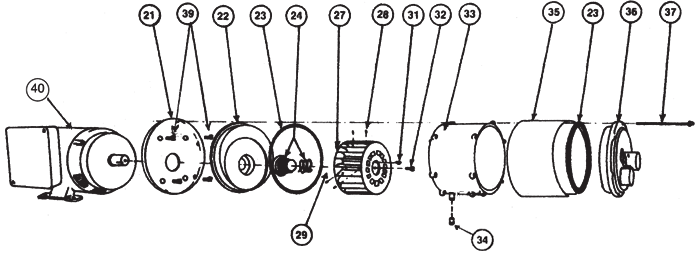

Vacuum pump Models 101&102, closed coupled motors |
| 40A |
3 HP, 1750 RPM, 230/460/60/3, TEFC, 1.25SF |
|
2500-30-3 |
| 40B |
5 HP, " " " " |
|
2500-50-3 |
| 40C |
7.5 HP, " " " " |
|
2500-75-3 |
| 40D |
10 HP, " " " " |
|
10/3/00 |
Made in the USA
